AcousticMat 1 – Superior Sound Insulation
Product Overview
AcousticMat 1 is meticulously designed to enhance the sound insulation of various structures. Comprising a dense mineral loaded vinyl layer bonded with cross-linked closed cell PE foam, it targets both sound transmission and impact noise, providing a comprehensive acoustic solution.
Key Features
Dual-Layer Construction: A 3mm heavy layer barrier paired with 6mm PE foam for effective noise dampening.
Environmentally Conscious: Lead-free, without unrefined aromatic oils or bitumen, and contains a high percentage of recycled materials.
Technical Specifications
Density: 633 Kg/m³ (±10%)
Fire Reaction: Pass (FMVSS 302)
Weight: 7.6 Kg/m² (±10%)
Thickness: 9 mm (±10%)
Thermal Conductivity: 0.06 K/W
Impact Noise Reduction (DLw): 27 dB (Typical)
Airborne Noise Reduction (DnT,w + Ctr): 50 dB (Typical)
Operating Temperature Range: -20 – 95°C (Short exposure at extremes)
Colour: Black/Grey
|
|

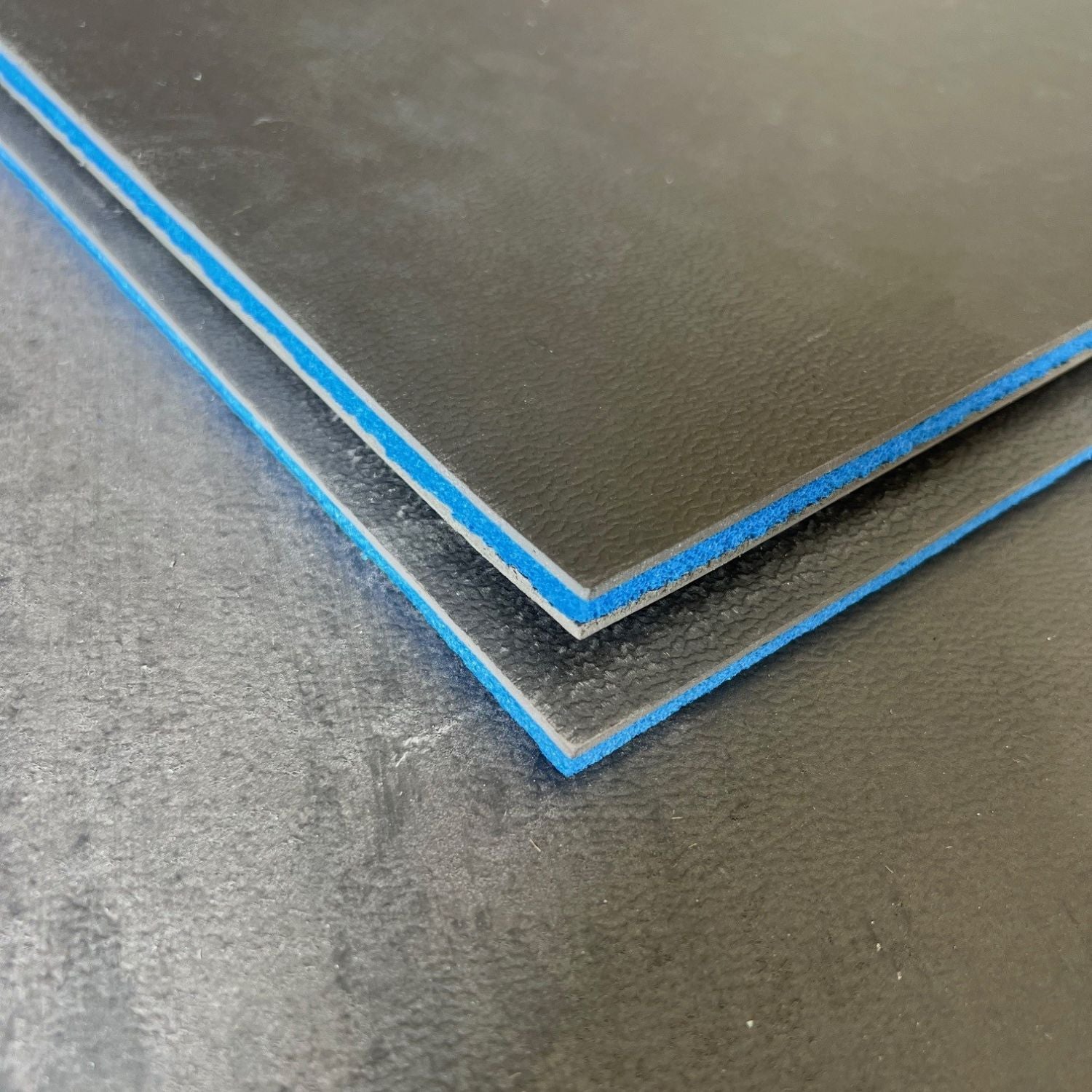

AcousticMat products are a construction of cross-linked closed cell PE foam and heavy layer BM sound barrier. The heavy layer is a dense, mineral loaded vinyl (MLV) sound barrier comprised of a high percentage of recycled raw materials.
Download The Full Data & Spec Sheet 1
|
|
|
AcousticMat products are a construction of cross-linked closed cell PE foam and heavy layer BM sound barrier. The heavy layer is a dense, mineral loaded vinyl (MLV) sound barrier comprised of a high percentage of recycled raw materials.
Download The Full Data & Spec Sheet 2
|
Applications
Ideal for retrofitting soundproofing to existing panels and structures made from materials like wood, metal, and rigid plastics.
AcousticMat 2 – Enhanced Acoustic Performance
Product Overview
AcousticMat 2 elevates the acoustic capabilities of AcousticMat 1 by adding another heavy layer barrier. The result is a triple-layered composite that maximizes sound insulation for a truly serene environment.
Key Features
Triple-Layer Composition: 3mm heavy layer barrier, 6mm PE Foam, and an additional 3mm heavy layer for superior soundproofing.
Green Construction: Composed of sustainable materials, including a mineral-loaded vinyl sound barrier with significant recycled content.
Technical Specifications
Density: 1000 Kg/m³ (±10%)
Fire Reaction: Pass (FMVSS 302)
Weight: 15.1 Kg/m² (±10%)
Thickness: 12 mm (±10%)
Thermal Conductivity: 0.06 K/W
Impact Noise Reduction (DLw): 28 dB (Typical)
Airborne Noise Reduction (DnT,w + Ctr): 52 dB (Typical)
Operating Temperature Range: -20 – 95°C (Short exposure at extremes)
Colour: Black/Grey
Applications
AcousticMat 2 is the go-to choice for upgrading sound insulation in residential, commercial, or industrial settings, particularly where existing panels require enhanced noise control.
Elevate the acoustic comfort of your environment with AcousticMat 1 – where leading-edge sound insulation meets ecological responsibility.
